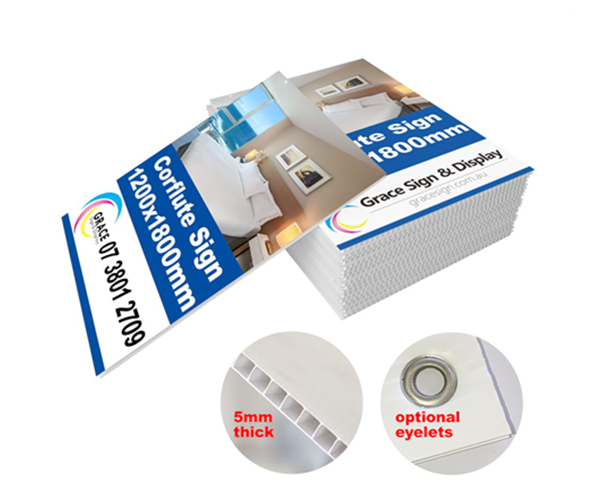

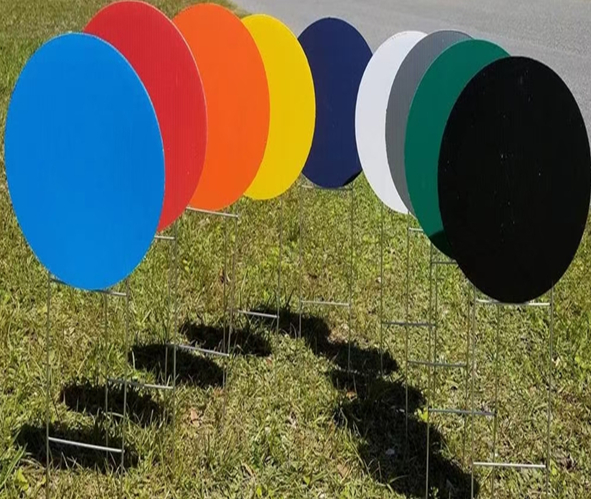

Corrugated Plastic Sign
Corrugated Plastic Poster Board
Corrugated Plastic Poster Board
Corrugated Plastic Poster Board
Corrugated Plastic Poster Board
Corrugated Plastic Poster Board
Corrugated Plastic Poster Board
Corrugated Plastic Poster Board
Corrugated Plastic Poster Board

1.    Material: Polypropylene(PP)

2.    Thickness: 3mm, 4mm, 5mm, 6mm

3.    Weight: 500 - 1200gsm

4.    Size: 18x24in, 4x8ft

5.    Surface: Double sides corona treatment

6.    Print: Screen printing, Digital printing


   Flute Space

   3mm, 4.2mm



   Tolerances

   Value

   Dimensional tolerance along the flutes or length

   0/+ 20mm

   Dimensional tolerance across the flutes or width

   +/- 2mm

   Technical Characteristics

Value

   Softening temperature

144°C

   Crystaline melting point

166 - 175°C

   Flash ignition temperature

350°C

   Self ignition temperature

380°C

   Calorific value

11,000cal.kg

   Specific heat

0.46 cal/gm°C

   Limited oxygen index

0.174 – 0.180

   Burn rate

5.3 – 8.2 cm/min



   Treatments


   Corona discharge

   Enables flexographic and screen printing – min 50 Dynes

   Anti static

   10^6 - 10^9, Incorporated into the bulk polymer for maximum.18-24 months expected life even after washing

   UV stabilised

   Extends product life when used outdoors

   Flame retardant (UL94)

   V0, V1, V2
