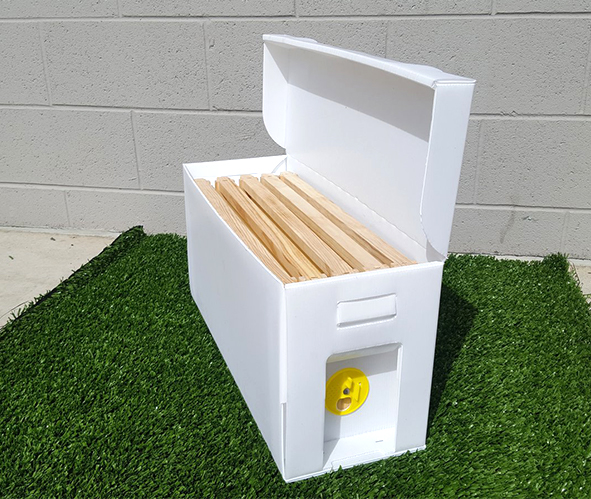

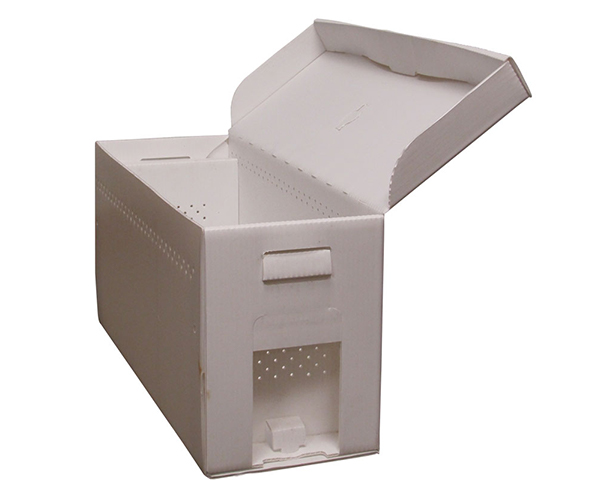

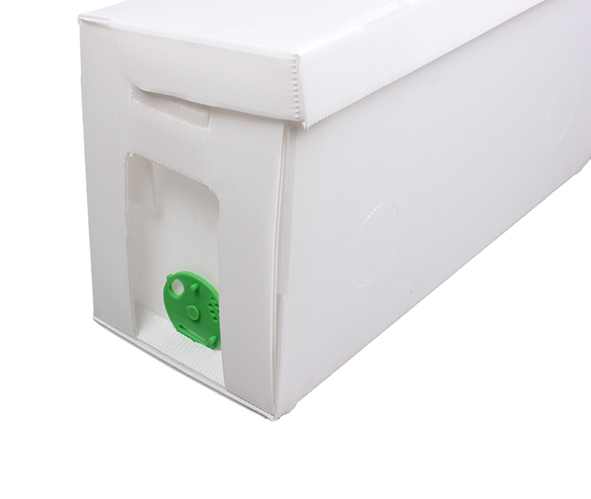

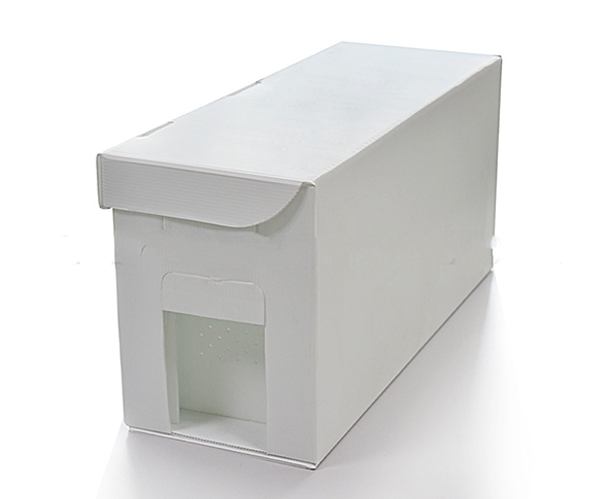

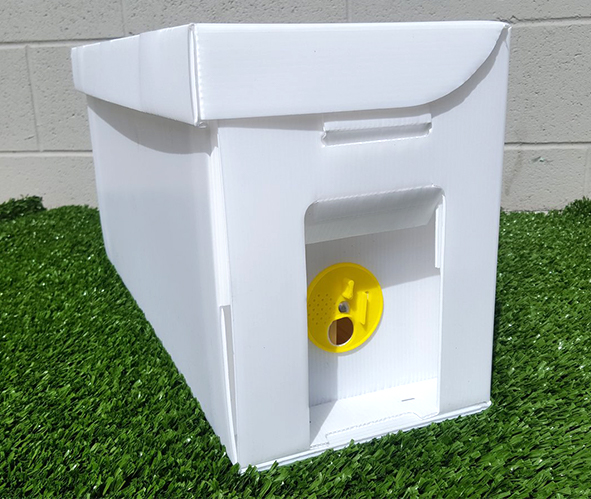

Corrugated Plastic Nuc Box
Correx Nuc Box
Correx Nuc Box
Correx Nuc Box
Correx Nuc Box
Correx Nuc Box
Correx Nuc Box
Correx Nuc Box
Correx Nuc Box

1.    Material: Polypropylene(PP)

2.    Thickness: 4mm

3.    Frame: 5 frames

4.    Size: 525x220x275mm or customized

5.    Shape: Customized

6.    Color: White, Black, Blue, Green, Yellow, Red or customized

7.    Features: ECO-Friendly, Water Proof, Reusable, Stackable and so on


   Thickness: mm

   All values are normal

   Weight: grammes per square meter

     2

   250 - 350

     3

   400 - 550

     4

   650 - 750

     5

   800 - 900

     6

   1000 - 1200

     7

   1500 - 1600

     8

   1700 - 1800

     10

   2000 - 2500

     12

   3000

   Flute Space

   3mm, 4.2mm



    Tolerances

   Value

    Dimensional tolerance along the flutes or length

    0/+ 20mm

    Dimensional tolerance across the flutes or width

   +/- 2mm



   Technical Characteristics

   Value

   Softening temperature

   144°C

   Crystaline melting point

   166 - 175°C

   Flash ignition temperature

   350°C

   Self ignition temperature

   380°C

   Calorific value

   11,000cal.kg

   Specific heat

   0.46 cal/gm°C

   Limited oxygen index

   0.174 – 0.180

   Burn rate

   5.3 – 8.2 cm/min



   Treatments


   Corona discharge

   Enables flexographic and screen printing – min 50   Dynes

   Anti static

   10^6 - 10^9, Incorporated into the bulk polymer for   maximum.18-24 months expected life even after washing

   UV stabilised

   Extends product life when used outdoors

   Flame retardant (UL94)

   V0, V1, V2
