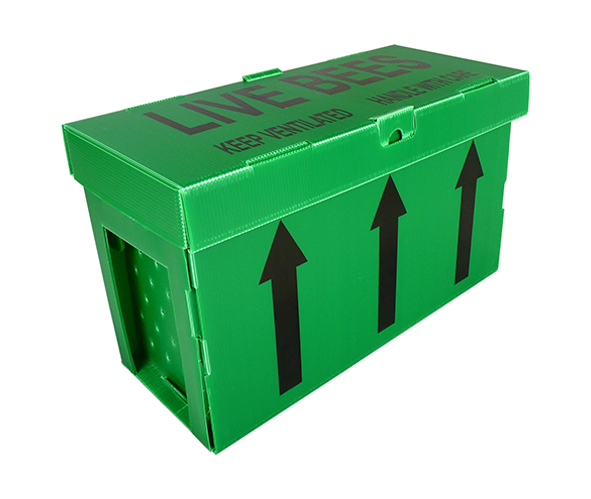

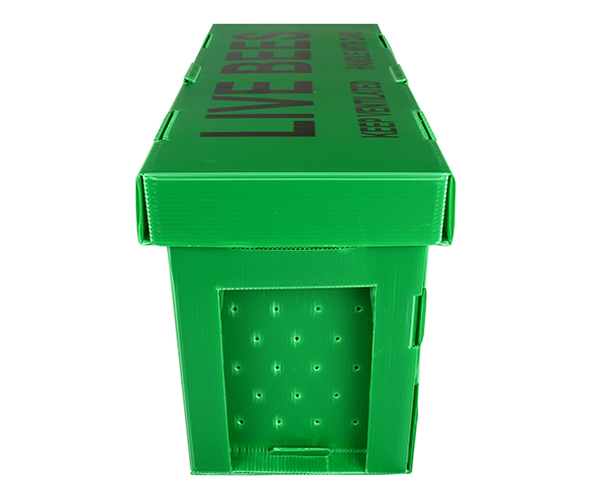

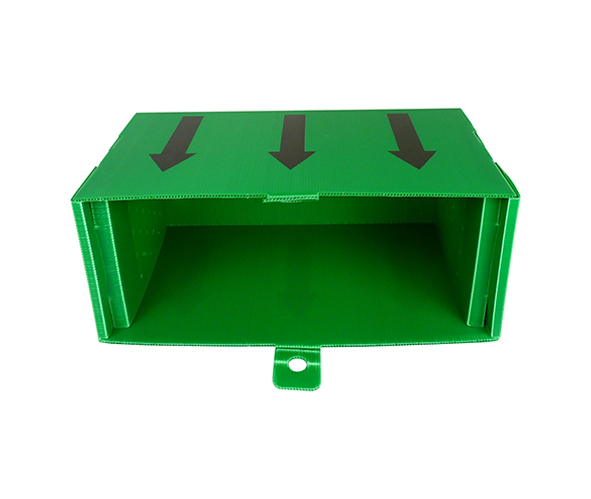

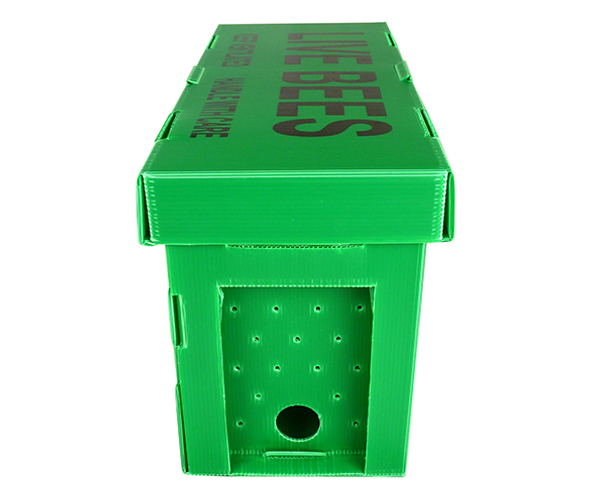

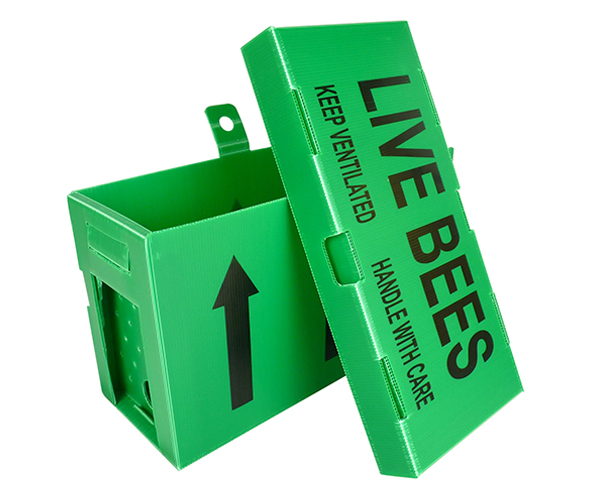

Corrugated Plastic Nuc Box
4mm Corrugated Plastic Nuc Box
4mm Corrugated Plastic Nuc Box
4mm Corrugated Plastic Nuc Box
4mm Corrugated Plastic Nuc Box
4mm Corrugated Plastic Nuc Box
4mm Corrugated Plastic Nuc Box
4mm Corrugated Plastic Nuc Box
4mm Corrugated Plastic Nuc Box

1.    Material: Polypropylene(PP)

2.    Thickness: 4mm

3.    Frame: 5 frames

4.    Size: 525x220x275mm or customized

5.    Shape: Customized

6.    Color: White, Black, Blue, Green, Yellow, Red or customized

7.    Features: ECO-Friendly, Water Proof, Reusable, Stackable and so on


   Thickness: mm

   All values are normal

   Weight: grammes per square meter

     2

   250 - 350

     3

   400 - 550

     4

   650 - 750

     5

   800 - 900

     6

   1000 - 1200

     7

   1500 - 1600

     8

   1700 - 1800

     10

   2000 - 2500

     12

   3000

   Flute Space

   3mm, 4.2mm



   Tolerances

   Value

   Dimensional tolerance along the flutes or length

   0/+ 20mm

   Dimensional tolerance across the flutes or width

   +/- 2mm



   Technical Characteristics

   Value

   Softening temperature

   144°C

   Crystaline melting point

   166 - 175°C

   Flash ignition temperature

   350°C

   Self ignition temperature

   380°C

   Calorific value

   11,000cal.kg

   Specific heat

   0.46 cal/gm°C

   Limited oxygen index

   0.174 – 0.180

   Burn rate

   5.3 – 8.2 cm/min



   Treatments


   Corona discharge

   Enables flexographic and screen printing – min 50   Dynes

   Anti static

   10^6 - 10^9, Incorporated into the bulk polymer for   maximum.18-24 months expected life even after washing

   UV stabilised

   Extends product life when used outdoors

   Flame retardant (UL94)

   V0, V1, V2
